Push button | Astro time switch | LED dimmer | 230VAC - 500VA/2.1A | Arrow pressure | 9010

Customer review 4.8 / 5
(12)

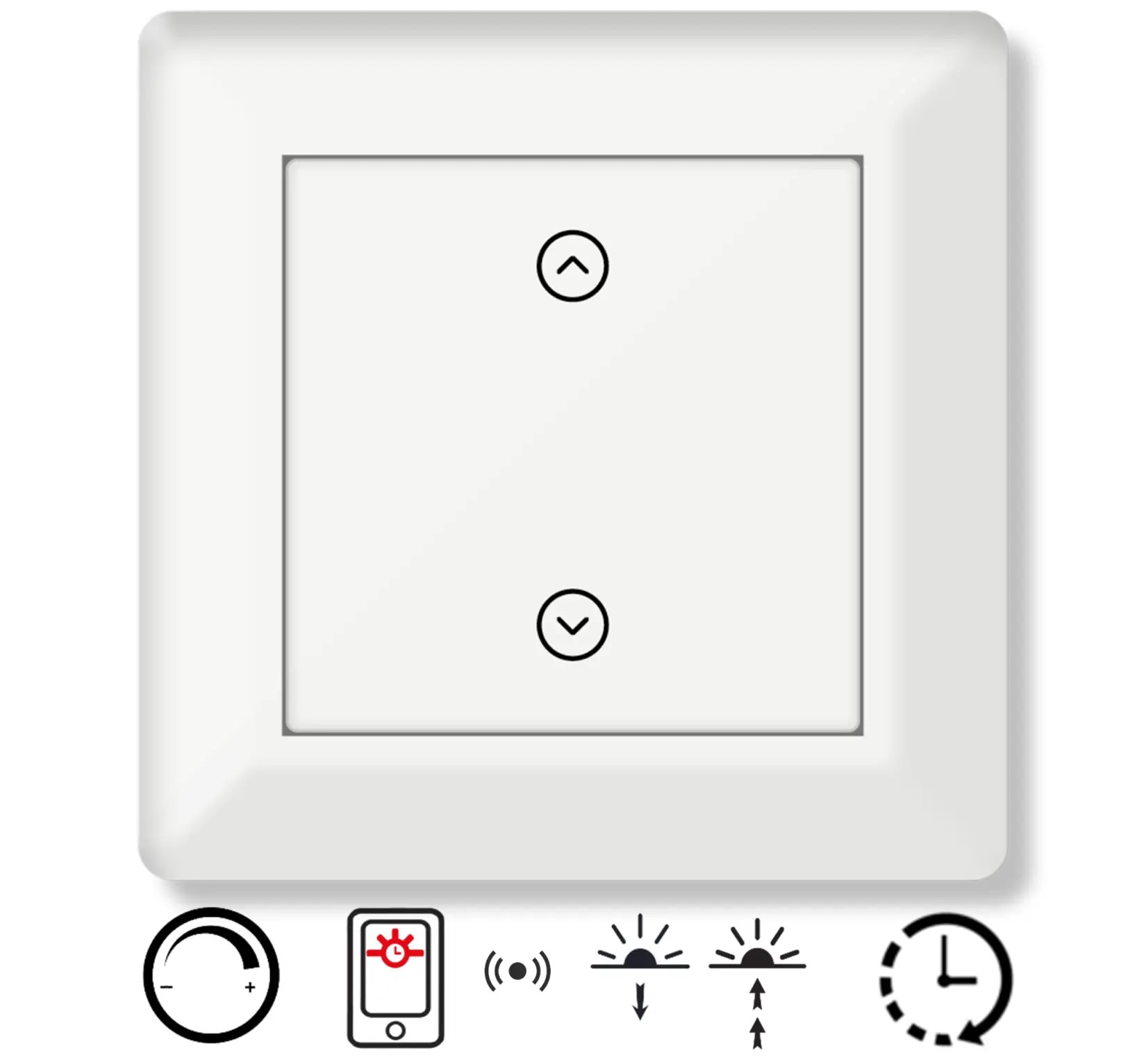

Complete set: touch dimmer, push button, inside frame and cover frame

 94,49  42,96

 35,50 excluding VAT

Sold Out

With this printed Astro time switch, you get a smart 500-watt 2-wire touch dimmer that adjusts your lighting to the sun's natural light cycle. You can also take advantage of several additional time settings and have your lights switched automatically. This system is perfect for anyone seeking comfort and energy savings in everyday life.

Advantages:

  • Automates lighting based on daylight: For optimal atmosphere and comfort both indoors and outdoors.
  • Reduces energy consumption: Helps save on electricity costs through efficient light management.
  • Additional manual settings: So that your lighting is perfectly tailored to your preferences.
  • Controllable via an app: Even when you're nearby, for ultimate convenience.
  • Ensures a safer home: By simulating presence, which promotes burglary prevention.

Here's how it works:

  1. Installation: Mount the base element in the wall and simply click the button module onto it later.
  2. Connection: Connect the light dimmer to your smartphone via the free Freelux app.
  3. Configuration: Set your preferences for automatic light adjustment.

Characteristics:

  • Self-learning technology: For location-based adjustments based on Google Maps.
  • Adjustable turn-on times: Around sunrise and sunset, for automatic light adjustment.
  • Adjustable minimum and maximum dimming levels: For precise light settings.
  • Timer: Automatically turn lights on and off at preset times.
  • Naming: Ability to give each Astro switch or dimmer a unique name.
  • Modern and sleek design: suitable for any interior.

In this shop you can select a different color or, if desired, finish with the cover frames from many other System 55 manufacturers.

Delivery time 1-2 days
Free shipping from €75 excluding VAT
Via PostNL Track & Trace
Professional advice

4 Main Benefits According to Users

1. Automatic Light Management
1. Automatic Light Management
Automatic adjustment of lighting at sunrise and sunset for added security and comfort, also ideal for burglary prevention.
2. Operate Simply with Bluetooth
2. Operate Simply with Bluetooth
Easy operation via the free Freelux app on your smartphone thanks to integrated Bluetooth technology.
3. Save Energy, Save Money
3. Save Energy, Save Money
The smart Astro line optimizes your energy use, which ensures lower energy costs and a more environmentally friendly home.
4. Fully Customized
4. Fully Customized
Adjust lighting exactly to your needs with adjustable light levels and schedules for ultimate comfort and flexibility.

Install Easily Within 10 Minutes

Installing your new light switch is done as follows. Questions? Get in touch.

1. Turn off your power & check the voltage
Turn off your power through the meter box by flipping the fuse. After removing your switch, always check with a voltmeter to make sure there is no voltage left on the wires.
2. Remove your current switch
Using a screwdriver, carefully remove your current switch.
3. Install the dimmer, knob & windows
Easily install the dimmer, knob and windows by following the steps in the manual.
4. Enjoy your new light dimmer
Enjoy the convenience, comfort, and/or safety of your new light dimmer.
Questions about the product or installation? Get in touch!
Do you have more questions about the product or its installation?

Then contact us for free. We are happy to think with you to help you further.
Technical data
Manual
Apps
Article code 7361321111
EAN code 8715422117411
Model BEDIM-500S BM-BLE BASIC_1 ARROW 9010
Color Pure white gloss
Tension 230VAC-500VA/2.1A
Load at 25 °C Incandescent lamps - 1 ... 500 W | HV halogen lamps - 1 ... 500 W | Electronic transformers - 1 ... 500 W/VA | Electronic transformers with LV LED - 1 ... 500 W/VA | HV LED lamps dimmable - 1 ... 500 W/VA | Energy-saving lamps dimmable - 1 ... 200 VA
"For dimmable HV LED lamps and electronic transformers with LV LED, the max. connection power depends on the lamp P(ower) F(actor) At PF ~ 1 this corresponds to 500W, at lower PF 500VA must be adhered to. Non-dimmable LED lamps usually have a PF ~ 0.6 which limits the switchable power to 320W or even lower: Ohms capacitive - 1 ... 500 W/VA | Ohms and HV LED - 1 ... 500 W/VA | Ohms and energy saving lamps - 1 ... 200 W/VA | Capacitive-inductive - Not permitted | Inductive transformers with LV LED - Not permitted | Inductive transformers - Not permitted | Ohms-inductive - Not permitted."
